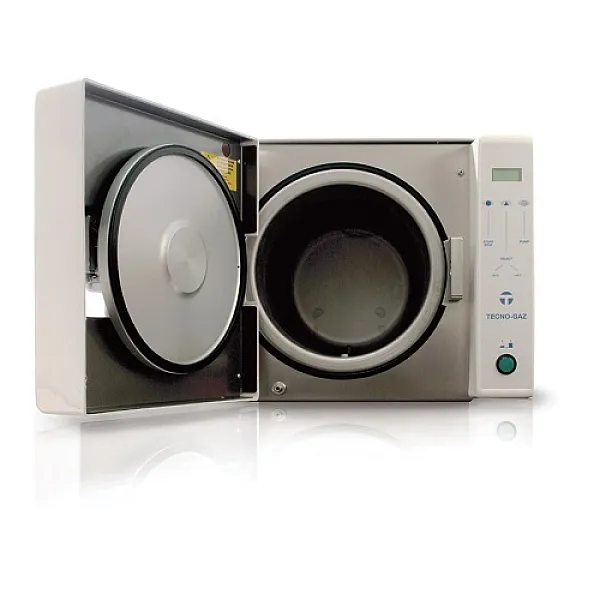

HYDRA EVO AUTOCLAVE - 15 litres - 230V

Automatic steam autoclaves for the sterilization of unwrapped instruments. Closure system with an operator safety pivot. Thermodynamic system for the ejecting of the “cool” air locks.

• Two sterilization cycles: 121°C and 134°C

Automatic phases of pre-heating, sterilization cycle and drying.

• Pre-set, non-modificable cycles

All cycles are pre-set at the factory and guarantee perfect and safe sterilization of treated materials. There is no way the operator can manipulate or alter the cycles, and this safeguards against risks deriving from human error.

• Pre-set temperatures

The temperatures set for our autoclave cycles are 134°C and 121°C. The 134°C cycles are normally used for the sterilization of solid and ferrous materials. 121°C cycles are normally used for sterilization of thermoplastic and delicate materials.

• Water tank

Hydra EVO only has one water tank. This tank must be filled with distilled or demineralized water and acts as a container

for collecting the used water which is then re-utilized for new cycles.

• Safety on the door

Each door is equipped with 2 locks:

– a mechanical one which does not open when pressure is exerted

– a dynamic one, that operates thanks to a special form of door seal

• Safety devices installed

– Certified safety valve

– PED on sterilization chambers

• Controls on the Autoclave

– Control of the water that enters into the chamber

– Safety Thermostat

– Time Control

The sterilization chamber is completely stainless steel AISI 304 and it is heated by a band shaped heating element which

grants uniformity of the heat. Supplied with four aluminium trays and one key for their extraction. User manual available in English, French, Italian, Spanish.

• 93/42/EEC Medical device

• 73/23/EEC Low tension

• 93/336/EEC Electromagnetic Compatibility

Technical Specifications

• Stainless steel chamber: ø 24.5 x 32 cm

• External size: 44 x 38 x 50 cm (W x H x D)

• Net weight: 35 kg

• 2 sterilization cycles: 121°C and 134°C

• Operating Voltage: 230V ±10% – 50/60Hz

• Power consumption: 1700 W

• Class N

• Made in Italy – Warranty: 1 year

• Cycle: Not wrapped 121° C

• Materials:

– Fragile solids

– Rubber solids

– Glass

– Turbines (if indicated by producer)

• Sterilization time: 20 min

• Drying time: 5 min

• Max load: 2.8 kg (700 g load in any tray)

• Working pressure: 1.2 – 1.3 bars

• Cycle: Not wrapped 134° C

• Materials:

– Stainless metal solids

– Turbines (if indicated by producer)

• Sterilization time: 10 min

• Drying time: 5 min

• Max load: 2.8 kg (700 g load in any tray)

• Working pressure: 2.1 – 2.2 bar
